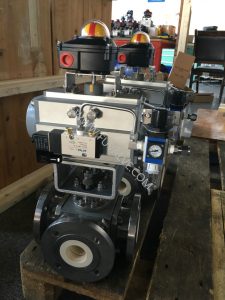

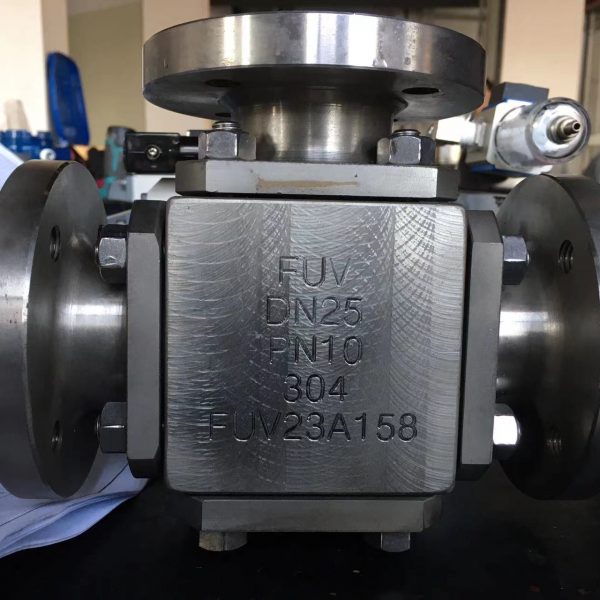

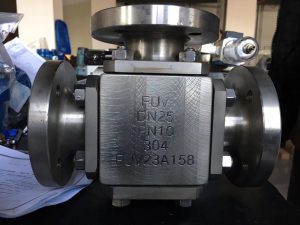

3-way ceramic ball valve for IBA & water Slurry

Medium:IBA & water (40% DS)

Phase:Slurry

Ambient Temperature:-10 – 40°C

Abbrasive Due To Quartz; MOHS 5

Corrosive Due to Chlorides up to 30.000 ppm (3%)

Actuator requested:Pneumatic controller,Input Signal 4-20mA

This client also purchased 2-way ceramic ball vavles for this application,O-port and V-port.

3-way ceramic ball valve for IBA & water Slurry

Design Features:

1. Floating ball or trunnion ball

FUVALVE provide two basic structures for ceramic ball valves: Floating ball and trunnion ball. For 4” (DN100) and smaller,the valve has a floating ball, and for 5” (DN125) and larger sizes, trunnion mounted ball is provided.

For other main features of ceramic lined ball valve, please refer to ceramic floating ball valves and ceramic trunnion ball valves. Or contact us at sales@fuvalve.com for more detailed technical information of ceramic ball valves.

2. The parts touching medium are all ceramics—Ceramic fully lined

Because the mediums are mostly high abrasive and corrosive, ceramic components are assembled into forged metal body of ceramic lined ball valves which absorbs most physical loads and shock from piping lines. The medium will not directly touch valve body, therefore no parts will be worn out or corroded by the aggressive medium.

3. Bare stem valves, Pneumatic and electric control system

Generally ceramic ball valves are actuated by pneumatic actuators or electric actuators. Fuvalve has well trained technicians to assemble complete pneumatic and electric actuator onto valves. We can assemble all possible accessories to ceramic ball valves per customer’s requirements, such as pneumatic actuators, limit switch, electric-pneumatic petitioners, solenoid valves, filter and regulators, and smart electric actuators, etc.

Fuvalve can offer bare stem ceramic ball valves to customers, so that they can assemble their actuators onto valve by themselves. A yoke with ISO 5211 mounting pad is provided along with bare stem ceramic ball valves for easy installation.
