FUV ceramic ball valve for transports a stream of carbon

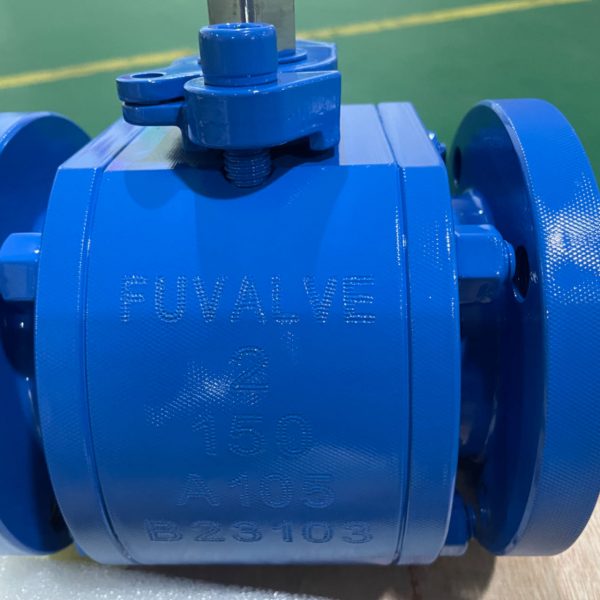

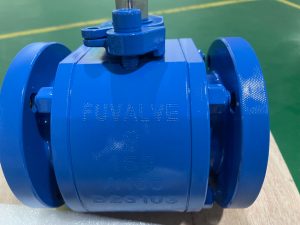

Product name:Half-lined ceramic ball valve

Valve Size:2″

Applications：

The application is purely for isolation of compressed air at 90 psi.  The working temperatures are between 70 and 90 F.  The reason for the ceramic ball is that the same pipe transports a stream of carbon at 160 lbs/minute.  When the pipe is transporting carbon, the pressure will never exceed 90 psi, but will more than likely be around 30 psi.  The line is isolated when the system is not in use for maintenance purposes.  Therefore the valve will be actuated manually and will only be closed on maintenance turns.  It will be normally open when the pipe is transporting carbon.The client is a well known steel factory in Texas,our valves have been delivered since 2011,the client purchase 4ea/order every year,below valves were just shipped in May 2023.FUV ceramic ball valve has been sucessful to replace KITZ 150SCTBZM or a TOYO 10KDUCTILE IRON BALL VALVE on the pipeline.

FUV ceramic ball valve

The FUV ceramic ball valve is designed for the working conditions of high-impurity,highviscosity,high hardness and large granular.The ceramic balls and seats inside are hard sealed so that the valves can be zero leakage,economical,practical.

Wear and corrosion resistance
The valve ball and valve seat are all made of Hi-performance structural ceramics with hardness of HRA87 or above. So structural ceramic ball valves can withstand the impact of Hi-speed liquids and hard grains, displaying excellent performance on wear resistance.

• Long working life
  The static pressure test showed no leakage after 10000 times opening-closing.
• Wide-range of applications
  Structural ceramic ball valves are applicable.Hard sealing ball valves can also be used in media with particles and fibers

Nominal Pressure:PN 1.0-6.8

Strength Testing Pressure:2.4/3.8/6.0/9.6

Low-pressure Gas Seal Testing Pressure:1.8/2.8/4.4/7.1

Suitable Medium:Dust,Water,Oil,Gas,Slurry.

Suitable Temperature:-40 to 280/500 Deg C
