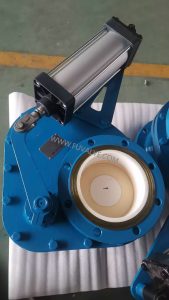

Pneumatic ceramic swing disc feeding valve Type:BZ643/ZKJ

The rotary feed valve adopts structural ceramics as sealing vice (gate and seat are wear-resistant rotary gate sealing structure, opening and closing structural ceramics), which is resistant to scouring and good abrasion resistance.
In the process of the gate plate spin, with polishing self-cleaning function, opening and closing flexible. Special drop bevel, large valve cavity design, completely solve the problem of ash accumulation. The piston rod of the pneumatic actuator is not in contact with the medium, prolonging the service life of the actuator valve.
One-way seal when closing, suitable for dry ash, slurry, pulverized coal, materials and other media transportation. Commonly used in pneumatic conveying system as a feed valve, no maintenance, long service life

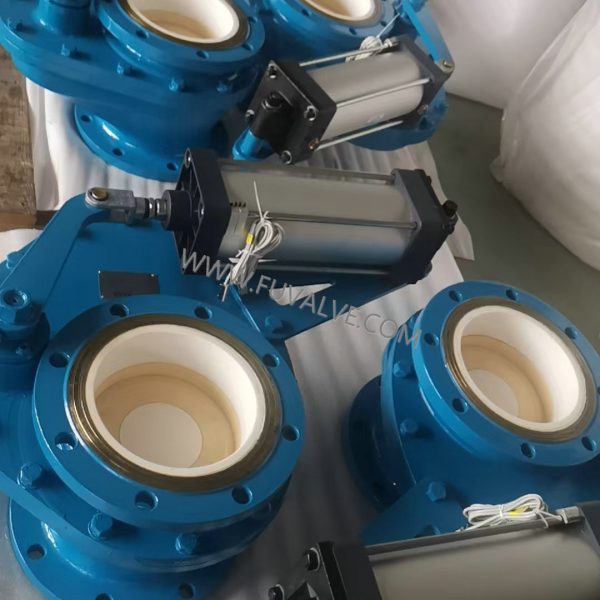

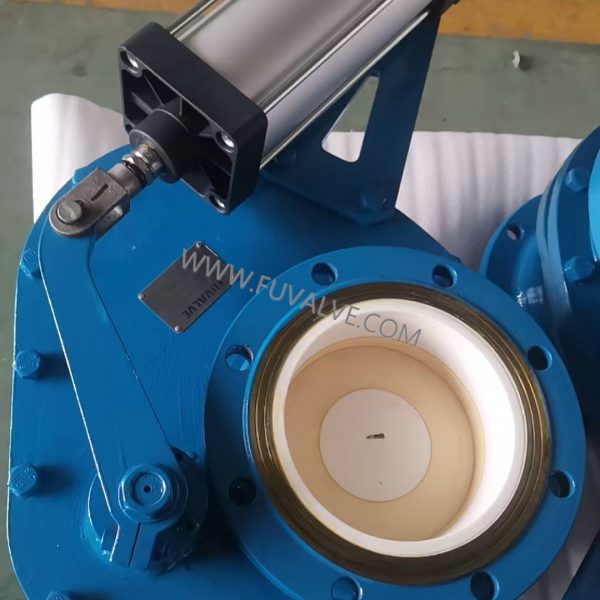

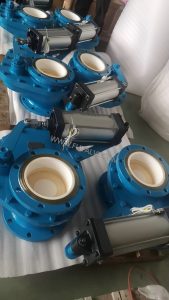

Pneumatic ceramic swing disc feeding valve

Application specification
Nominal Diameter:PN200-DN300 [Full bore]
Nominal pressure 1.0MPa 150Lb
Applicable media: dry ash, pulverized coal, materials and media containing particles, etc.
Temperature: ≤280°C

1. Corrosion Resistant:

Cold Isostactic Pressing (CIP) and high-temperature sintering nanometer high-purity 99% Al2O3 and 99.7% Al2O3 (alumina) and ZrO2 (zirconia) ceramics will not interact with almost all organic and inorganic chemicals, nor contaminate process medium. Their physically and chemically stability against most acids, salts and alkalis will last for many years with little or no corrosive degradation, which make sure that Floating Ceramic ball valve have excellent performance in corrosive applications.

2. Abrasion Resistant:

The hardness of 99% alumina ceramics is about HRA88, harder than zirconia (about HRA85), solid tungsten carbide is about HRA 90,which is about 8 times harder than stainless steel. As valve trim, ceramic components make Floating Ceramic ball valve work well in the most severe abrasive conditions, such as pneumatic conveying to transport silicon powder, coal powder, Mg powder, etc.

3. Ceramic-to-Ceramic spherical seated:

The perfect fine grinded spherical seal between ceramic ball and seat ensure a Class VI shutoff. The anti-scratch design between disc and seat, which prevent sealing surface  from being scratched by particles. The ceramic ball will not be stuck so ball will not be broken.

Temperature range
Depends on the material used for Plug type ceramic check valves, the normal working temperature is -29~250 degree.
Valve tightness
The disc and seat sealing face are well polished, all the ceramic globe valve have tight shut off properties. The leakage class is up to Class VI.
