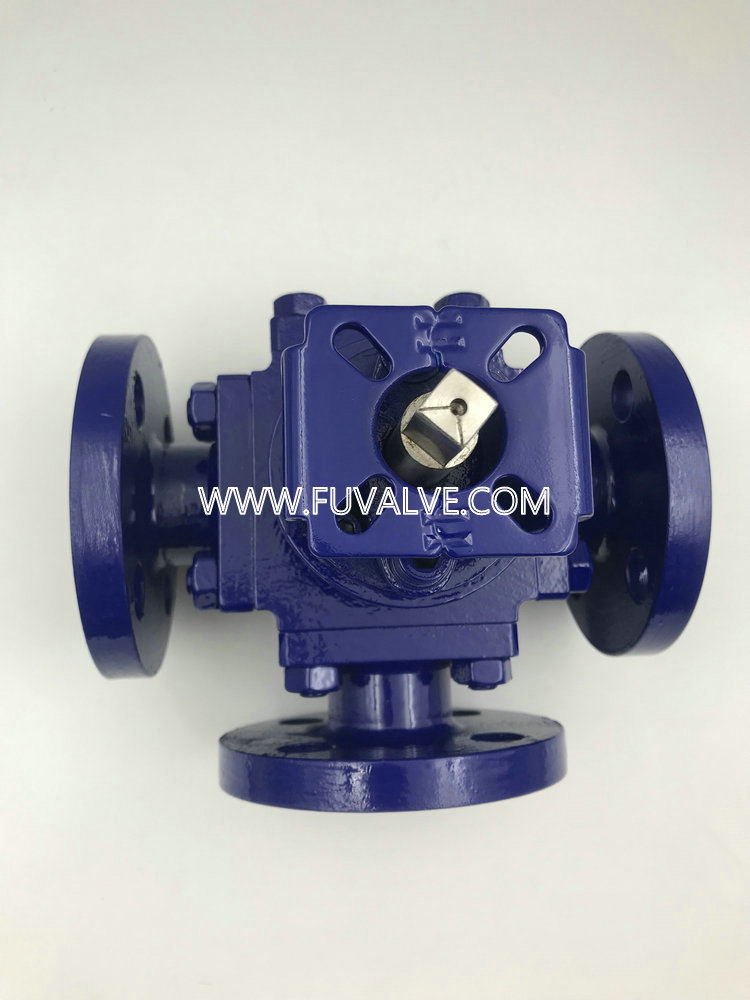

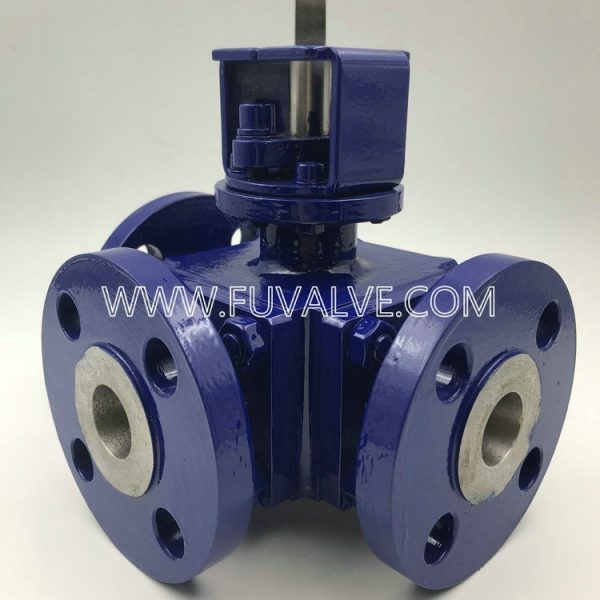

3-way ceramic ball valve

FUVALVE ceramic ball valve have been widely used in all kinds of extreme corrosive and abrasive applications,such as Silicon Powder,Alumina Powder,Dry Coal Powder,Limestone Slurry,Gypsum Slurry,Plaster,Fly Ash,Mining Ore,Coal Powder Injection,Metallurgical dust,Thermal Power plant FGD lime slurry,Petroleum Solid Catalyst pneumatic conveying system ,TiO2 suspension with sulfuric acid,Ammonia solution with powder,Hydrochloric Acid,Liquid Chlorine.

TypeCeramic Ball Valve T-type/L-type
Pressure RatingPN10,PN16,CL150
Body MaterialWCB, A105, SS304,SS316,SS316L
Trim MaterialZrO2, 99% Al2O3,99.7%Al2O3,SSIC, STC, Si3N4
ActuationManual/Penumatic/Electric Actuator /Motor

Properties of Structural Ceramic Ball Valves

Typical properties of structural ceramic ball valves include:

  • Wear and corrosion resistance
    The valve ball, valve seat and inner lining are all made of Hi-performance structural ceramics with hardness of HRA87 or above. So structural ceramic ball valves can withstand the impact of Hi-speed liquids and hard grains, displaying excellent performance on wear and corrosion resistance.
  • Corrosion resistance
    The valve ball, valve seat and the inner lining are all made of Hi-performance structural ceramics. They have been examined by the Metal Research Institute of Chinese Academy of Sciences, showing that the structural ceramics have excellent corrosion-resistance, except to glass-liquor and hydrofluoric acid.
  • Long working life
    The static pressure test showed no leakage after 10000 times opening-closing.
  • Wide-range of applications
    Structural ceramic ball valves are applicable to various acid, alkaline or saline solutions, gaseous media, etc. Hard sealing ball valves can also be used in media with particles and fibers.
